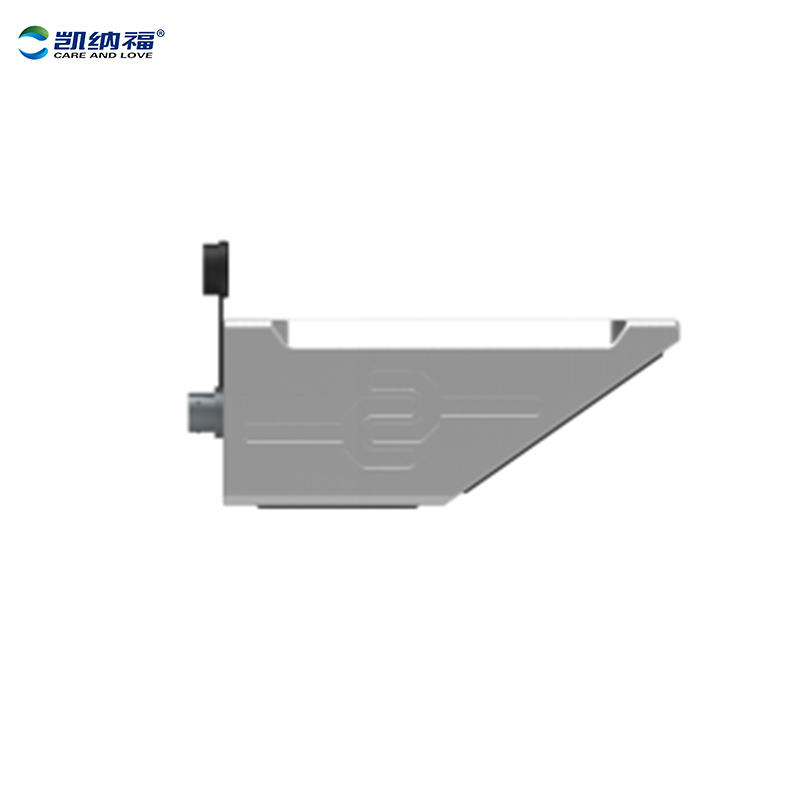

RS485 Wireless Radar Water Level Sensor Transmitter 12V-24V MODBUS Protocol

Brand Name:	KaiNaFu
Model Number:	KNF-1321
MOQ:	1 pieces
Packaging Details:	Eco-friendly paper box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Document:

Measurement Types:

Flow Velocity, Water Level, Flow Rate

Measurement Range:

0. 1-20m/s, 0.1-40m

Digital Interface:

RS485

Working Voltage:

12-24V

Supply Ability:

200 pieces+One month

Highlight:

RS485 Radar Water Level Sensor

12V Radar Water Level Sensor

24V wireless radar level transmitter

Product Description

The KNF-1321 is a radar flowmeter module that integrates liquid level measurement and flow rate measurement based on microwave technology. It can be used for non-contact flow measurement in open channels, rivers, irrigation canals, underground drainage networks, flood warning and other occasions. This product features low power consumption, compact size, high reliability and easy maintenance. The measurement process is not affected by factors such as temperature, sediment, river pollutants, and floating objects on the water surface. Among them, the ranging radar and flow rate radar are respectively default configured to be compatible with ASCII and MODBUS protocols at the factory, and can switch protocol modes according to corresponding instructions by themselves.

RS485 Wireless Radar Water Level Sensor Transmitter 12V-24V MODBUS Protocol 0

Product features

(1). Non-contact measurement, combined with cross-sectional parameters to calculate flow rate, is not affected by wind, temperature, haze, sediment, floating objects on the water surface, etc.
(2). It is applicable to various measurement conditions and can output measurement data of flow velocity, water level and flow rate.
(3). Low power consumption, compact size, high reliability, and easy maintenance;

Power supply
Working voltage	12-24V	Working current	110mA
Working temperature	-45℃/80℃
Flow velocity radar sensor
Measurement range	0. 1-20m/s	Measurement accuracy	±0.01m/s
Resolution	0.01m/s	Digital interface	RS485
Antenna Angle	12deg	Transmission frequency	24GHz
Baud rate	9600bps	Identification of flow velocity direction	Bidirectional automatic identification
Water level radar sensor
Measurement range	0.1-40m	Measurement accuracy	±2
Resolution	1	Digital interface	RS485
Antenna Angle	10deg	Transmission frequency	80GHz
