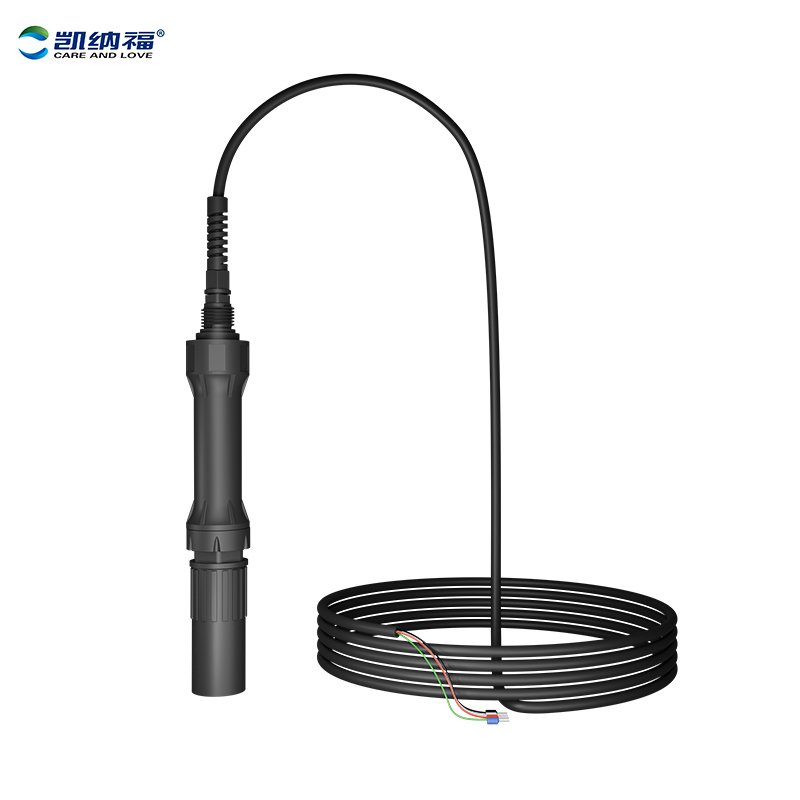

Submerged Liquid Conductivity Sensor Salinity TDS TEMP Meter For Water Testing

Online Conductivity And Salinity TDS TEMP Sensor Graphite Two-electrode Replaceable Probe Design

 1.Product Introduction

    The KNF-102PRO type conductivity and salinity sensor adopts the latest design sensor. Based on numerous on-site application experiences, it has undergone multiple upgrades on the original basis and is simple and convenient to use. The KNF-102PRO type conductivity design can be used for both pipeline installation (optional accessory: Y-shaped 3-way with end face seal) and submersible installation. When applied to pipeline installation, it can withstand a maximum pipeline pressure of 6bar, and the submerged installation can ensure normal use at a water depth of 50 meters. The conductivity adopts a 2-electrode working mode. The electrode material is graphite, which can effectively reduce the damage of polarization effect to the sensor. The unique circuit design enables the sensor to work accurately and reliably in a wide range of water bodies from 0 to 100mS/cm.

2.Sensor features
1. Digital sensor, RS-485 output, supports MODBUS RTU protocol instructions
2. No reagents are needed, no pollution occurs, and it is more economical and environmentally friendly
3. It can measure electrical conductivity, TDS, salinity and temperature
4. High-performance circuit design ensures high sensor stability
5.2 Electrode graphite sensor, easy to clean, stable and reliable data
6.IP68 protection, supporting up to 6bar pipe pressure and a water depth of 50 meters

3. Cable Definition
(1) Dimensions: 36x190mm (with protective cover)
(2) Power supply: 5-30VDC, current <15mA(@12VDC, no communication)
(3) Sensor cable
4-wire integrated TPU cable. OD = 5.5 mm

4.Technical indicators

5. Introduction to the Water Quality Monitoring Software Cloud Platform (DATAIO)

    All the water quality/water level related equipment produced by our company can be connected to the Kainafu water quality monitoring cloud platform! It can realize the reception, display, statistics, automatic analysis, storage, download and release of monitoring data from various water quality sensor devices. Generate visual calculation result charts intuitively on the display terminal of the monitoring management center.

▪ Desktop WEB page (login address: ion.onetestinc.com. Contact the product owner for a trial account to obtain it)
▪ Apple APP, Android APP
Wechat Official Account/Mini Program
