Industrial Online Salinity Conductivity Water Sensor Four Electrode ODM

The Online Conductivity/salinity /TDS/TEMP Sensor Features A Four-electrode Replaceable Probe Design

1.product overview

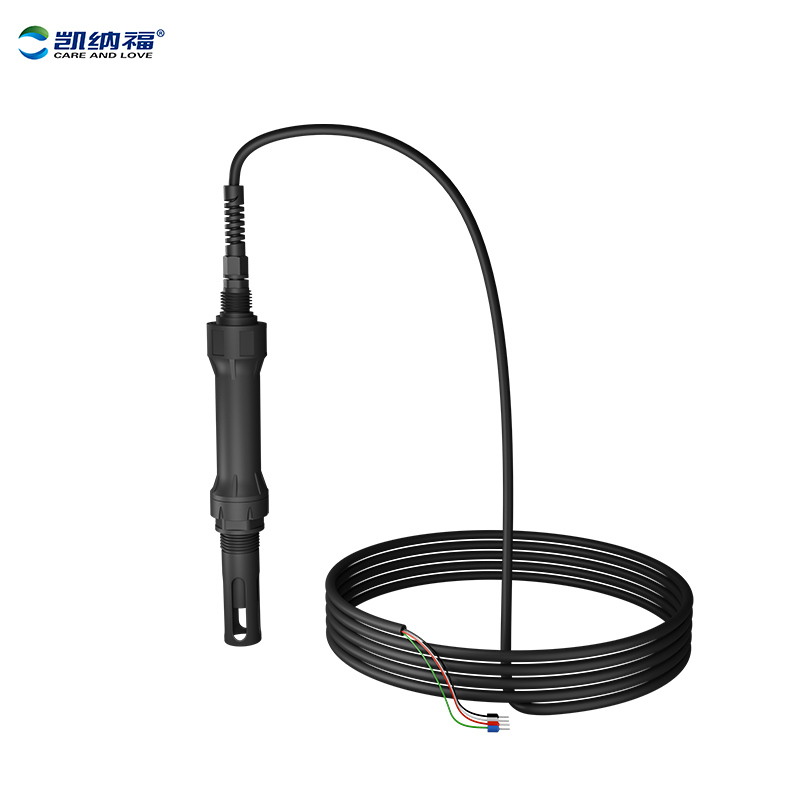

KNF-102HPRO conductivity and salinity sensor is a newly designed sensor, which has been upgraded on the basis of many field application experiences, and is simple and convenient to use. KNF-102HPRO conductivity and salinity sensing design can be used for pipeline installation (optional accessories: Y-type 3-way with end face seal) or submerged installation. When it is used in pipeline installation, it can bear the pipeline pressure of 6bar at the highest, and the submerged installation can ensure the normal use of 50m water depth. The conductivity adopts 4-electrode working mode, and the electrode material is graphite, which can effectively reduce the damage of polarization effect to the sensor. The salinity sensor adopts international salinity standard and can be used in mariculture and marine salinity monitoring.

2.Sensor features:

l Digital sensor, RS-485 output, supporting MODBUS RTU protocol instruction.

l No reagent is needed, pollution is avoided, and it is more economical and environmentally friendly.

l It can measure conductivity, TDS, seawater salinity and temperature.

l Support the application of international salt standard to seawater monitoring.

l High performance circuit design, high sensor stability.

l 4-electrode plane sensor, easy to clean, stable and reliable data.

l IP68 protection, which can support up to 6bar pipeline pressure and 50 meters water depth.

 3.technical parameters

5. Introduction to the Water Quality Monitoring Software Cloud Platform (DATAIO)

    All the water quality/water level related equipment produced by our company can be connected to the Kainafu water quality monitoring cloud platform! It can realize the reception, display, statistics, automatic analysis, storage, download and release of monitoring data from various water quality sensor devices. Generate visual calculation result charts intuitively on the display terminal of the monitoring management center.

▪ Desktop WEB page (login address: ion.onetestinc.com. Contact the product owner for a trial account to obtain it)
▪ Apple APP, Android APP
Wechat Official Account/Mini Program
