Acoustic Doppler point flowmeter/flowmeter, suitable for scenarios such as rivers, open channels, and pipelines, is used for online monitoring of flow velocity, water level, temperature, instantaneous flow rate, and cumulative flow rate in water areas.
The instrument measures flow velocity by the ultrasonic Doppler principle and water level by the ultrasonic time difference method or static pressure method. The flow rate is calculated by setting the cross-section. The Doppler flowmeter features a compact structure, no rotating parts, long service life, simple operation and maintenance-free operation. It is widely used in scenarios such as sponge cities, water supply and drainage networks, black and odorous water bodies, natural rivers, open channels, reservoirs, flow field analysis in scientific research, and liquid level detection.

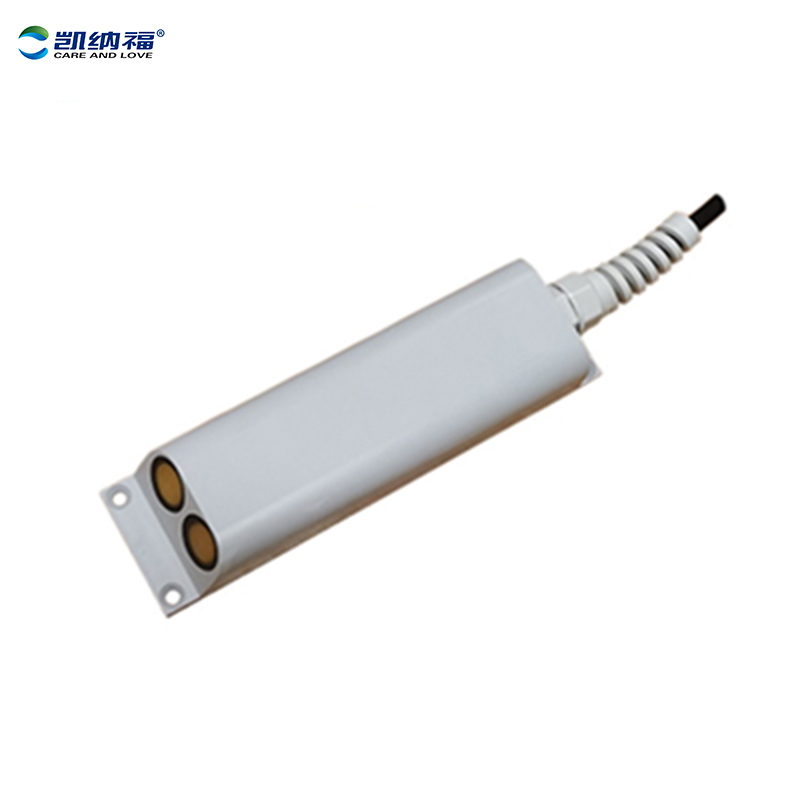

IP68 Waterproof Flow Velocity Doppler Water Flow Meter Sensor High Precision 0

Product features

The sensor supports instantaneous flow and cumulative flow and can measure the flow velocity of still water
It can measure the flow of non-full pipes, full pipes and open channels
It can measure the flow rate of circular, rectangular, trapezoidal and triangular cross-sections, with a wide measurement range of 0 to 10m/s
The flow velocity measurement accuracy is high, with an error of 1mm/s
Pure physical method measurement, no calibration required, supports static pressure liquid level measurement without calibration
Supports temperature-compensated flow rate measurement and liquid level measurement
Modbus RTU protocol
The sensor has a protection grade of IP68 and supports long-term underwater operation
Online solution: Display or RTU + sensor + dedicated bracket

Technical indicators

Flow velocity range	0～10m/s
Flow velocity resolution rate	0.001m/s
Flow speed precision	0.001m/s
Static pressure liquid level range	0～10m
Static pressure liquid level accuracy	±0.5%FS
Static pressure liquid level resolution	0.001m
Temperature measurement range	-20~60℃
Sensor size	193.375029.5mm
Installation	Special bracket
Material quality	Metal, plastic, rubber
Protection level	IP68
Power supply	Direct current 12V / 24V
Power consumption	Less than 100mA during measurement; Less than 28mA during hibernation
Communication interface	RS485,Modbus
Working temperature	-20～60℃
Working pressure	Maximum 6Bar
Lightning protection	Support
Surge protection	Support
EMI suppression	Support
