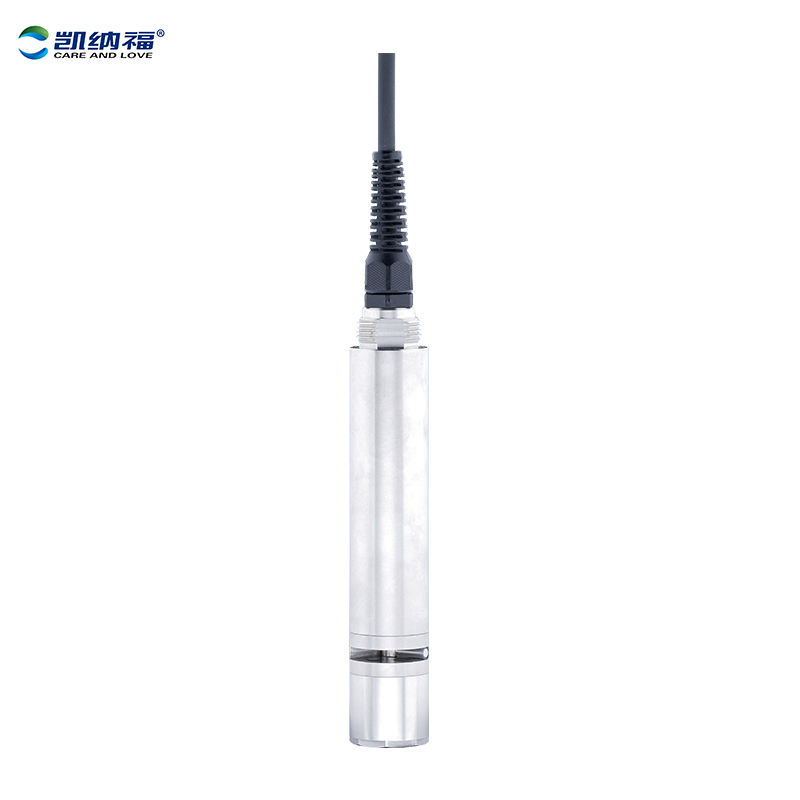

Automatic Industrial Turbidity Sensor Meter COD Probe For Water Quality

Brand Name:	KaiNaFu
Model Number:	KNF-1008A
MOQ:	1 pieces
Packaging Details:	Eco-friendly paper box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Document:

Measurement Range:

COD:(0-200/1000)mg/L; Turbidity:(0-500/2000)NTU； BOD:(0-100/500)mg/L; TOC:(0-80/400)mg/L

Working Principle:

Ultraviolet Absorption Method

Measurement Wavelength:

254nm、546nm

Resolution Rate:

0.01mg/L

Supply Ability:

500 pieces+One month

Highlight:

Water Quality industrial turbidity sensor

COD industrial turbidity sensor

COD water turbidity meter

Product Description

Online COD Probe Automatically Compensate For Turbidity Interference And Be Equipped With An Automatic Cleaning Device

Product Introduction
The KNF-1008A COD intelligent sensor adopts RS485 communication interface and standard Modbus protocol, with its own cleaning brush. It can simultaneously measure the absorbance of water at 254nm and 546nm, and convert it into BOD, COD, TOC, etc., quickly responding to changes in water quality. Data analysis software is randomly included, featuring functions such as calibration, recording, analysis, and diagnosis. It can be applied to small water stations, surface water, river sections, lakes and reservoirs, municipal sewage, seawater monitoring, etc.

Automatic Industrial Turbidity Sensor Meter COD Probe For Water Quality 0

Working principle	Ultraviolet absorption method
Measurement wavelength	254nm,546nm
Measurement range	COD:(0-200/1000)mg/L; Turbidity:(0-500/2000)NTU； BOD:(0-100/500)mg/L; TOC:(0-80/400)mg/L
Resolution rate	0.01mg/L
Measurement accuracy	士 5% or 3mg/L
Reproducibility	<2% or 1mg/L
Drift	士 2%
Linear error	士 5%
Detection limit	3mg/L
Response time	<10s
Communication interface	RS485, standard Modbus-RTU protocol
Size specification	D32mm, L175mm, 3-meter cable (customizable), 705g
Working environment	(0-60)°C,(0-3)bar
Working voltage	12V/24V DC,0.4W

Automatic Industrial Turbidity Sensor Meter COD Probe For Water Quality 1

Introduction to the Water Quality Monitoring Software Cloud Platform (DATAIO)

All the water quality/water level related equipment produced by our company can be connected to the Kainafu water quality monitoring cloud platform! It can realize the reception, display, statistics, automatic analysis, storage, download and release of monitoring data from various water quality sensor devices. Generate visual calculation result charts intuitively on the display terminal of the monitoring management center.

▪ Desktop WEB page (login address: ion.onetestinc.com. Contact the product owner for a trial account to obtain it)
▪ Apple APP, Android APP
▪ Wechat Official Account/Mini Program

Automatic Industrial Turbidity Sensor Meter COD Probe For Water Quality 2

Automatic Industrial Turbidity Sensor Meter COD Probe For Water Quality 3
