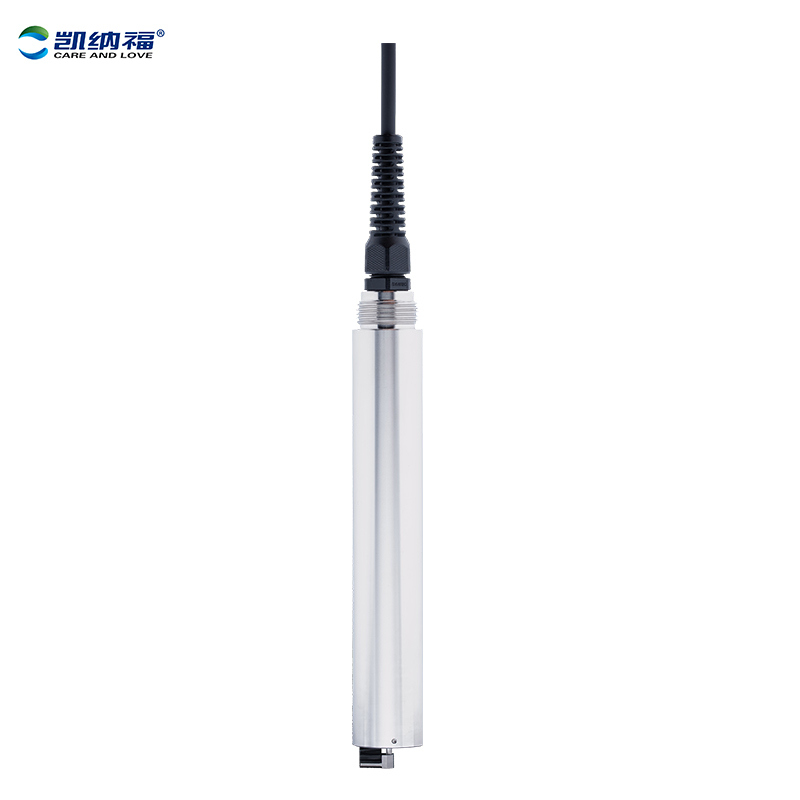

Online TSS Total Suspended Solids Probe RS485 860nm IP68 Waterproof

Brand Name:	KaiNaFu
Model Number:	KNF-104D
MOQ:	1 pieces
Packaging Details:	Eco-friendly paper box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Document:

Working Principle:

90° Scattering Method/Double-beam Scattering Method

Emission Wavelength:

860nm

Measurement Range:

(0-1000)mg/L, Scalable(0-4000)mg/L /(0-25)g/L

Accuracy:

±3% Or 3mg/L /±3% Or 0.02g/L

Supply Ability:

500 pieces+One month

Highlight:

IP68 waterproof total suspended solids probe

860nm total suspended solids probe

860nm tss probe

Product Description

Online suspended solids sensor RS485 Output Uses An Infrared Light Source, Which Is Not Affected By The Color Of The Water Sample, And Adopts A 90° Scattering Measurement Method

The KNF-104D intelligent suspended solids sensor adopts an RS485 communication interface and the standard Modbus protocol. It comes with a built-in cleaning brush and uses an infrared light source, which is not affected by the color of water samples. It employs a 90° scattering method and complies with the ISO 7027 international standard and the USEPA180.1 environmental protection standard. Data analysis software is randomly included, featuring functions such as calibration, recording, analysis, and diagnosis.
It can be applied in fields such as surface water, municipal sewage, industrial wastewater, sewage treatment, waterworks, and process control.

Online TSS Total Suspended Solids Probe RS485 860nm IP68 Waterproof 0

Technical indicators

Working principle	90° scattering method	Double-beam scattering method
Emission wavelength	860nm
Measurement range	(0-1000)mg/L, Scalable(0-4000)mg/L	(0-25)g/L
Resolution rate	0.01mg/L	0.001g/L
Measurement accuracy	±3% or 3mg/L	±3% or 0.02g/L
Reproducibility	<2% or 2mg/L	<2% or 0.01g/L
Detection limit	5mg/L	0.05g/L
Drift	±2%
Linear error	±5%
Response time	<10s
Communication interface	RS485, standard Modbus-RTU protocol
Size specification	D30mm,L175mm,Cable 3 meters (customizable),490g
Working environment	(0-60)℃ ,(0-3)bar
Working voltage	12V/24V DC,0.6W

Online TSS Total Suspended Solids Probe RS485 860nm IP68 Waterproof 1

Unit: mm

Introduction to the Water Quality Monitoring Software Cloud Platform (DATAIO)

All the water quality/water level related equipment produced by our company can be connected to the Kainafu water quality monitoring cloud platform! It can realize the reception, display, statistics, automatic analysis, storage, download and release of monitoring data from various water quality sensor devices. Generate visual calculation result charts intuitively on the display terminal of the monitoring management center.

▪ Desktop WEB page (login address: ion.onetestinc.com. Contact the product owner for a trial account to obtain it)
▪ Apple APP, Android APP
▪ Wechat Official Account/Mini Program

Online TSS Total Suspended Solids Probe RS485 860nm IP68 Waterproof 2

Online TSS Total Suspended Solids Probe RS485 860nm IP68 Waterproof 3
