Electrode Wastewater ammonia Water Quality Monitoring Sensors ODM

Brand Name:	KaiNaFu
Model Number:	KNF-1007A+
MOQ:	1 pieces
Packaging Details:	Eco-friendly paper box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Document:

Working Principle:

Ion-selective Electrode

Measurement Range:

NH4+:(0-10/100/1000)mg/L;pH:(0-14);T:(0-60)C

Measurement Accuracy:

NH4+:+10% Or 0.3mg/L

Resolution Rate:

NH4+:0.01mg/L;pH:0.01;T:0.01C

Supply Ability:

500 pieces+One month

Highlight:

Electrode water quality monitoring sensors

ammonia water quality monitoring sensors

ODM water ammonia sensor

Product Description

Water Quality Ammonia Nitrogen Electrode Wastewater Ion Selection Method Has The Functions Of Temperature And PH Compensation, And Can Be Extended To Potassium Ion Compensation.

1. Product Introduction

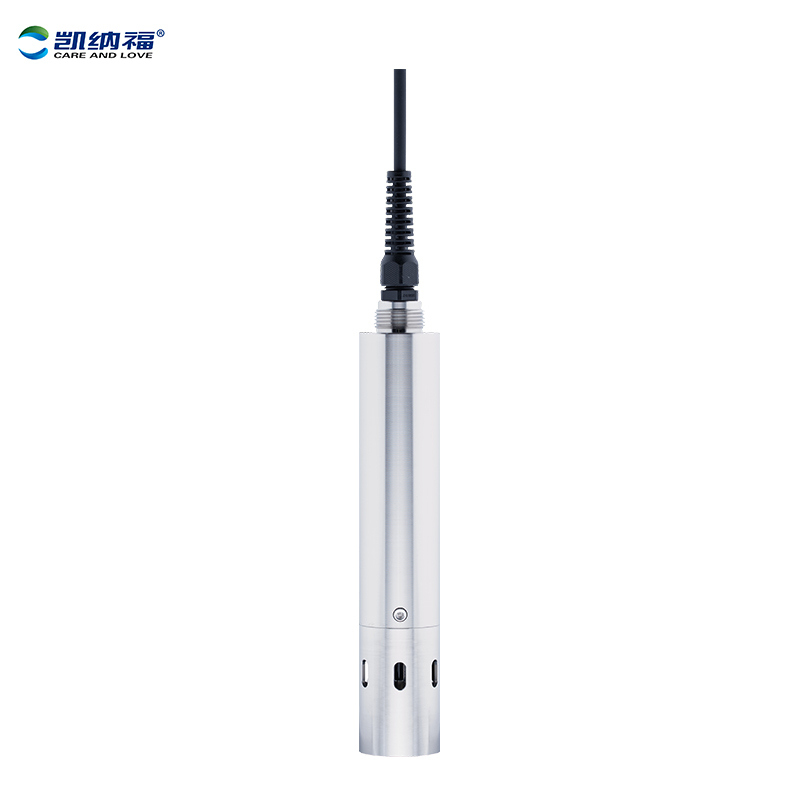

The KNF-1007A+ ammonia nitrogen intelligent sensor adopts RS485 communication interface and standard Modbus protocol, and is equipped with a built-in PT1000 temperature sensor. It features temperature and pH compensation functions and can be expanded with potassium ion compensation. Data analysis software is randomly included, featuring functions such as calibration, recording, analysis, and diagnosis. It can be applied to surface water monitoring, domestic sewage, agricultural sewage and municipal sewage monitoring, and is convenient for the integrated application of monitoring buoys, monitoring floating discharges, monitoring boats, etc.

Electrode Wastewater ammonia Water Quality Monitoring Sensors ODM 0

2.使用环境

Working voltage: 12/24V Temperature: (0-60) ℃ Pressure: (0-3) bar;

3.Technical indicators

Working principle	Ion-selective electrode
Measurement range	NH4+:(0-10/100/1000)mg/L;pH:(0-14);T:(0-60)C
Measurement accuracy	NH4+:+10% or 0.3mg/L
Resolution rate	NH4+:0.01mg/L;pH:0.01;T:0.01C
Reproducibility	<5% or 0.1mg/L
Drift	±5%
Detection limit	0.lmg/L
Linear error	±10%
Response time	<30s
Communication interface	RS485, standard Modbus-RTU protocol
Size specification	D42mm,L215mm,3 meters of cable (customizable), 860g
Working environment	(0-60)℃ ,(0-3)bar
Working voltage	12V/24V DC,0.3W

Introduction to the Water Quality Monitoring Software Cloud Platform (DATAIO)

All the water quality/water level related equipment produced by our company can be connected to the Kainafu water quality monitoring cloud platform! It can realize the reception, display, statistics, automatic analysis, storage, download and release of monitoring data from various water quality sensor devices. Generate visual calculation result charts intuitively on the display terminal of the monitoring management center.

▪ Desktop WEB page (login address: ion.onetestinc.com. Contact the product owner for a trial account to obtain it)
▪ Apple APP, Android APP
▪ Wechat Official Account/Mini Program

Electrode Wastewater ammonia Water Quality Monitoring Sensors ODM 1

Electrode Wastewater ammonia Water Quality Monitoring Sensors ODM 2
