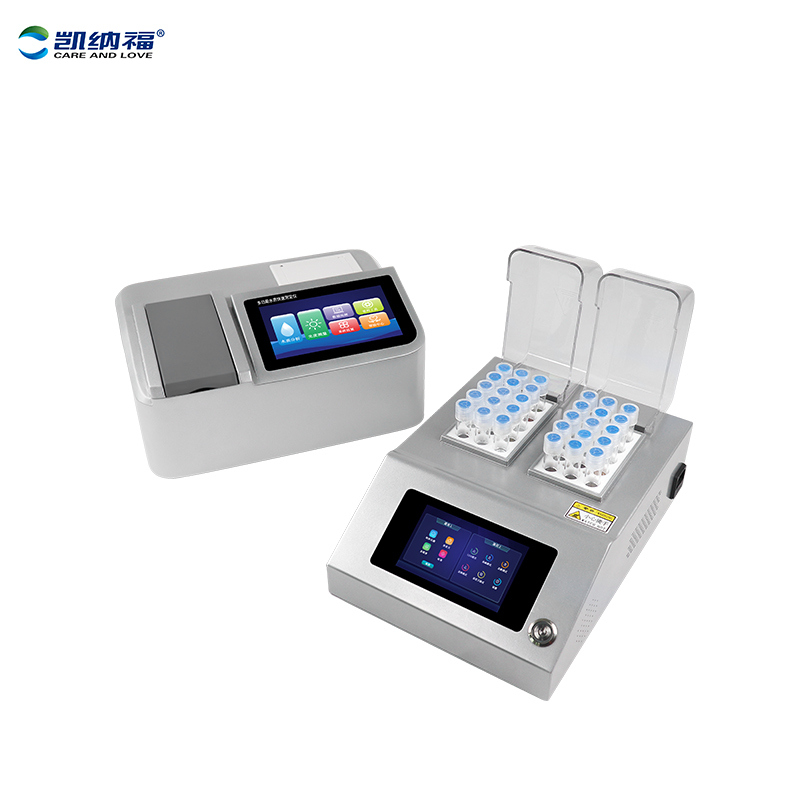

Desktop COD Water Quality Meters Analyzers Instrument Full Parameter

   Multi Parameter Water Quality Analyzer-Chemical Method Data Storage And On-site Printing

  The desktop full-parameter water quality rapid determination instrument is developed and produced based on the national testing standard (GB) and the environmental Ministry testing standard (HJ). The instrument adopts an industrial-grade IPS 7-inch capacitive touch screen, providing intuitive data and convenient operation. The detection device adopts an imported optical detection colorimetric system and is equipped with our company's independently developed intelligent water quality detection system.

This enables a leapfrog improvement in the stability, lifespan and detection accuracy of the instrument. The intelligent water quality detection system is developed based on the operational habits of Chinese people and is simple and fast to operate. It can be operated easily without the need for professionals. Truly achieve: Make testing simpler! It is widely applied in the fields of rapid water quality testing such as enterprise sewage detection, environmental monitoring stations, scientific research institutions, universities, and river pollution supervision.

Product features

1. Supports COD, ammonia nitrogen, total phosphorus, total nitrogen, turbidity, suspended solids... More than 40 testing indicators, etc.
2. We independently developed an intelligent water quality detection system that can be easily operated without the need for professionals.
3. Guide and prompt the operation steps to avoid operational misunderstandings; Truly achieve - make testing simpler!
4. 7-inch industrial IPS capacitive screen, intelligent guided UI design, clear operation at a glance, more detection fun.
5. The instrument is equipped with a built-in data printer, which can directly print the detection data or print historical data in batches.
6. It is equipped with built-in WIFI connection function, allowing for real-time viewing, printing of detection data and historical detection data.
7. It is equipped with dual USB (Type A and Type B) data connection functions, allowing for direct export or editing of detection data.
8. It is equipped with a built-in Bluetooth data communication module, allowing the detection data to be uploaded to the data acquisition system via Bluetooth for printing and editing.
9. Dual colorimetric detection system, simultaneously supporting tube colorimetry (16mm, 25mm) and dish colorimetry (10mm-40mm).
10. More environmentally friendly and efficient detection methods; Compared with competitors, the reagents are saved by another 30%, making the testing cost lower.
11. Faster reagent usage; More than 95% of the reagents leaving the factory are liquid reagents and can be used directly. Safe and accurate.
12. Equipped with a 30-hole dual-temperature-zone intelligent digestion instrument, multiple digestion projects can be operated simultaneously, doubling the efficiency.
13. Equipped with high-precision pipettes, it reduces the error in water sample transfer, making the detection more accurate and stable.

3.Some detection indicators

Technical indicators

1.Measurement error: ≤±3%
2. Repeatability error: ≤±2%
3. Wavelength accuracy: ±1nm
4. Optical stability: ≤±0.001A/20 minutes (100,000-hour lifespan)
5. Colorimetric method: Dual colorimetric detection system supports (16mm; 25mm colorimetric tubes; 10-40mm colorimetric cells)
6. Wavelength selection: Automatically selected based on the measurement items
7. Wavelength calibration: Automatic calibration
8. Detection light source: Imported solid-state cold light source
9. Data display: concentration, transmittance (%), absorbance (A
10. Operating System: Intelligent water quality detection system
11. Data transmission: USB (Type A, Type B), wifi, Bluetooth
12. Data printing: Built-in thermal printer
13. Data Processing: 50,000 pieces of data, 200 curves (including self-expansion)
14. Display screen: 7-inch industrial IPS capacitive screen (800*480 pixels)
15. Working environment: 5-45℃ ≤50% no condensation
16. Power supply mode: 12V 3A
17. Power supply requirements: 100-240V, 50-60Hz
18. Instrument weight: 340*250*165mm, 3.5kg

Configuration list

   One benchtop full-parameter water quality analyzer, two sets of high-end pipettes, one set of 30-hole dual-temperature zone intelligent digestion instrument, two protective covers, 300 pipette tips of 1ml, 5ml pipette tips 100 tubes, 7 sets of reagents, 1 set each of COD, ammonia nitrogen, total phosphorus and total nitrogen standard solutions, 40 digestion and colorimetric integrated tubes, 2 SS turbidity colorimetric bottles, 1 colorimetric rack, 1 colorimetric tube cleaning cloth, 1 USB data cable, 1 power adapter, 2 user manuals, 1 operation flowchart, 1 certificate of conformity/warranty card, etc.
