Rechargeable Portable Aquaculture Monitoring System Water Quality Analyzer All In One

   The Portable All-in-one Water Quality Analyzer For Aquaculture Is Highly Accurate In Chemical Measurement

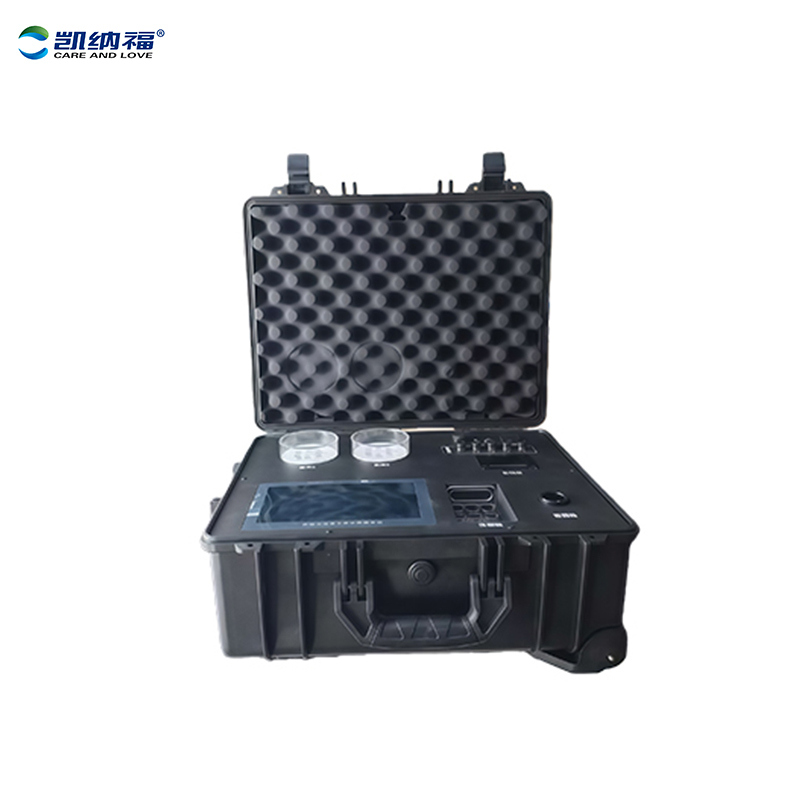

The KNF-2002 Plus portable all-in-one water quality analyzer is developed based on the national testing standards (G B) and the Ministry of Ecology and Environment testing standards (HJ). It is a portable and rapid water quality testing instrument developed with the concept of making it simpler and more accurate for front-line testing personnel. The instrument adopts an industrial-grade 7.0-inch high-definition screen, providing intuitive data. It is compact in design and easy to carry. The power supply adopts a 400 mah rechargeable large-capacity lithium battery, which can meet the requirements of outdoor water quality instrument digestion and detection. It is widely applied in rapid water quality testing fields such as environmental supervision, environmental governance, outdoor scientific research, river monitoring, ecological census, and aquaculture.

Functional features
1. Supports COD, ammonia nitrogen, total phosphorus, total nitrogen, turbidity, suspended solids... More than 70 testing indicators, etc.
2. The instrument is compact, fully packed in a box, lightweight and portable, making it suitable for mobile rapid detection.
3. We independently developed an intelligent water quality detection system that can be easily operated without the need for professionals.
4. Guide and prompt the operation steps to avoid operational misunderstandings; Truly achieve - make testing simpler!
5. 7.0-inch industrial high-definition display screen, intelligent guided UI design, clear operation at a glance, more detection fun.
6. It is equipped with a built-in thermal printer, which can directly print the test data (project number, test item, test person result, test personnel, test time, etc.).
7. Built-in WIFI connection function, allowing real-time viewing, printing of detection data and historical detection data.
8. It is equipped with a built-in USB data connection function, which can be linked to the data acquisition system for data editing and saving.
9. The detection device adopts an imported optical detection colorimetric system, with a 360° rotation and multi-point cold light laser solution, which increases stability by more than 10 times
10. More environmentally friendly and efficient detection methods; Compared with competitors, the reagents are saved by another 30%, making the testing cost lower.
11. Faster reagent usage; More than 95% of the indicators of the reagents leaving the factory are liquid reagents and can be used directly. Safe and accurate.
12. It is equipped with a dual-temperature 12-hole intelligent digestion instrument, which features rapid heating, high temperature control accuracy, and dual-temperature zone operation, significantly enhancing the detection efficiency.
13. Equipped with high-precision pipettes, it reduces errors in water sample transfer, is convenient and fast to use, and ensures more accurate and stable detection.

14. It supports photometric measurement, allowing users to conduct absorbance detection and analysis of water quality, etc.
It features multiple communication modes such as Bluetooth, WiFi and USB, and is available with optional GPS and 4G modes.
16. It features the Internet of Things, real-time viewing and recording of detection data, on-site environment, video, etc. through an APP
17. Support uploading data such as videos, pictures, concentrations, and geographical locations to the Internet of Things.
18. Support one account to link to multiple devices, allowing real-time data viewing and monitoring of device status
19. Data Query: Query and filtering of items such as name, result, light transmittance, absorbance, coefficient, number, and time.
20. Data Export: Supports communication modes such as USB, Bluetooth, WIFI, and 4G for data export, editing, and printing.
21. Data Analysis: It can conduct data analysis on information such as sample source, testing date, and project name, and print analysis reports, etc.
22. User Information: Users can set functions such as the tester, contact information, testing unit, and testing location (automatically located).
23. Safety value setting: The concentration of the index can be set according to the local pollutant discharge standards, and it has an over-limit reminder function.

Detection parameters:

Technical indicators:

Measurement error: ≤±3%
2. Repeatability error: ≤±2%
3. Wavelength accuracy: ±1nm
4. Optical stability: ≤±0.001A/20 minutes (100,000-hour lifespan)
5. Colorimetric method: 360° rotation + multi-point cold light laser scheme
6. Wavelength selection: Automatically selected based on the measurement items
7. Wavelength calibration: Automatic calibration
8. Detection light source: Imported solid-state cold light source
9. Data display: concentration, transmittance (%), absorbance (A
10. Operating System: Intelligent water quality detection system
11. Data transmission: USB, Bluetooth, WIFI, 4G
12. Data printing: Thermal printer
13. Data Processing: 50,000 pieces of data, 200 curves (including self-expansion)
14. Display screen: 7-inch industrial-grade color
15. Working environment: 5-45℃ ≤50% no condensation
16. Power supply mode: 24V =10A
17. Battery capacity: 40,000 mah

Configuration list

One KNF-2002 Plus portable all-in-one water quality analyzer, two high-end pipettes, 300 1ml pipette tips, 100 5ml pipette tips, seven sets of reagents, one bottle each of COD, ammonia nitrogen, total phosphorus and total nitrogen standard solutions, 40 digestion and colorimetric integrated tubes, and two colorimetric bottles One colorimetric stand, one colorimetric tube cleaning cloth, one set of charger, one USB data cable, one set of power adapter, two user manuals, one operation flowchart, and one certificate of conformity/warranty card.
