Realtime Integrated Moisture In Oil Sensor For Water Detection 1100ppb BTEX

Brand Name:	KaiNaFu
Model Number:	KNF-112
MOQ:	1 pieces
Packaging Details:	Eco-friendly paper box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Document:

Range:

5000ppb(NDSA) Is Approximately Equal To 1100ppb(BTEX).

Resolution:

0.01 PPB

Detection Limit:

5ppb( NDSA ). 1ppb ( BTEX )

Linearity:

R2>0.999(continuous Dilution Of Standard Solution)

Protection Grade:

IP 68

Maximum Operating Pressure:

3 Bar

Supply Ability:

500 pieces+One month

Highlight:

realtime moisture in oil sensor

1100ppb moisture in oil sensor

1100ppb oil detection sensor in water

Product Description

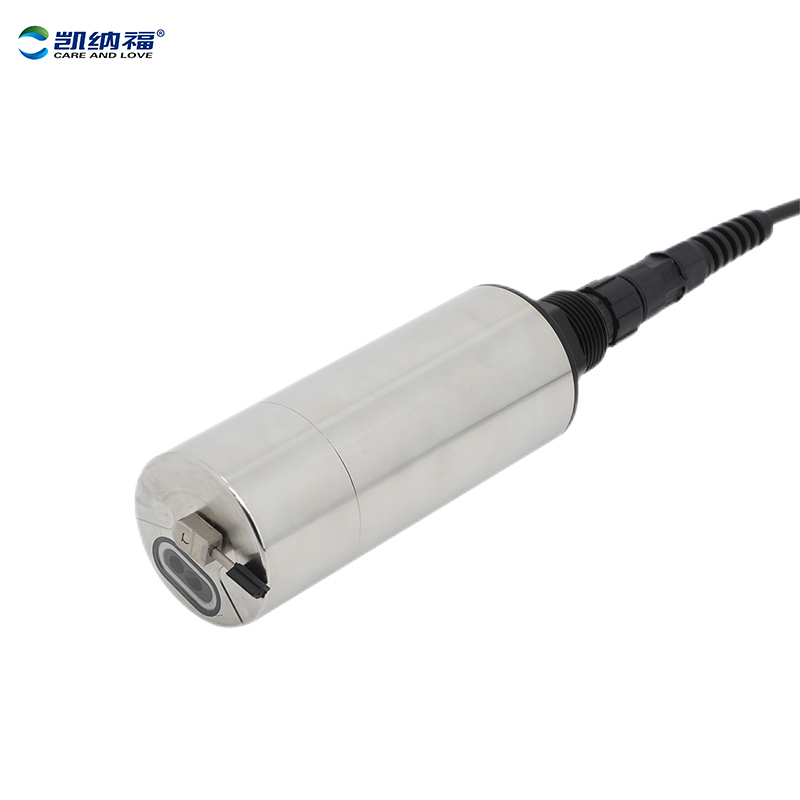

KNF-112 Integrated Self-cleaning Brush For The Online Oil Sensor In Water Is Put Into Use

1.Product Overview
KNF-112 online oil sensor in water adopts the principle of ultraviolet fluorescence. Compared with several commonly used methods, the fluorescence method is more efficient, faster, has better repeatability and can be used for real-time online monitoring. It is equipped with an automatic cleaning brush that can eliminate bubbles and oil, reduce the impact of contamination on measurement, extend the maintenance cycle, and maintain excellent stability even when used online for a long time. It can play a role in monitoring and early warning of oil pollution in water.

2.Sensor features
Digital sensor, RS-485 output, supports MODBUS
Equipped with an automatic cleaning brush to eliminate the influence of oil stains on the measurement
It adopts unique optical and electronic filtering technology to eliminate the influence of ambient light on the measurement
Imported high-precision UV LED light source, high stability, small drift
It has a long service life and is not affected by suspended particles in water

Realtime Integrated Moisture In Oil Sensor For Water Detection 1100ppb BTEX 0

3.Technical indicators

Name	Parameter
Model	KNF-112
Measurement principle	Ultraviolet fluorescence method
Laser wavelength	254nm
Fluorescence monitoring wavelength	360nm
Measurement range	5000ppb(NDSA) is approximately equal to 1100ppb(BTEX).
Resolution	0.01 PPB
Detection limit	5ppb( NDSA ). 1ppb ( BTEX )
Linearity	R2>0.999(continuous dilution of standard solution)
Protection grade	IP 68
Maximum operating pressure	3 bar
Temperature range	0-50℃(Non-freezing)
Sensor interface	Supports RS-485 and Modbus protocols
Power supply information	DC 12-24V, current <50mA(not during cleaning)
Installation	Submersible/flow-through installation (tail NPT3/4 thread)
Probe cable length	10 meters (default), customizable
Size	53*193mm
Shell material	316L(Customizable titanium alloy)
Calibration	Zero-point, one-point or two-point calibration

4. Introduction to the Water Quality Monitoring Software Cloud Platform (DATAIO)

All the water quality/water level related equipment produced by our company can be connected to the Kainafu water quality monitoring cloud platform! It can realize the reception, display, statistics, automatic analysis, storage, download and release of monitoring data from various water quality sensor devices. Generate visual calculation result charts intuitively on the display terminal of the monitoring management center.

▪ Desktop WEB page (login address: ion.onetestinc.com. Contact the product owner for a trial account to obtain it)
▪ Apple APP, Android APP
▪Wechat Official Account/Mini Program

Realtime Integrated Moisture In Oil Sensor For Water Detection 1100ppb BTEX 1

Realtime Integrated Moisture In Oil Sensor For Water Detection 1100ppb BTEX 2
