IP68 Online Water Turbidity Sensor Optical Probe Automatic Cleaning ODM

Brand Name:	KaiNaFu
Model Number:	KNF-1004/A
MOQ:	1pieces
Packaging Details:	Eco-friendly paper box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Document:

Measurement Principle:

90° Light Scattering Method

Range:

0-1000NTU

Precision:

Protection Grade:

Sensor Interface:

Supports RS-485 And MODBUS Protocols

Cleaning Device::

Self-cleaning Brush (KNF-1004A)

Supply Ability:

500 pieces+One month

Highlight:

IP68 Water Turbidity Sensor

Optical Water Turbidity Sensor

ODM wq730 turbidity sensor

Product Description

The Online Turbidity Sensor, Optical Turbidity Probe, Automatic Cleaning Brush, RS485 Output, Is Put Into Use

1. Product Introduction

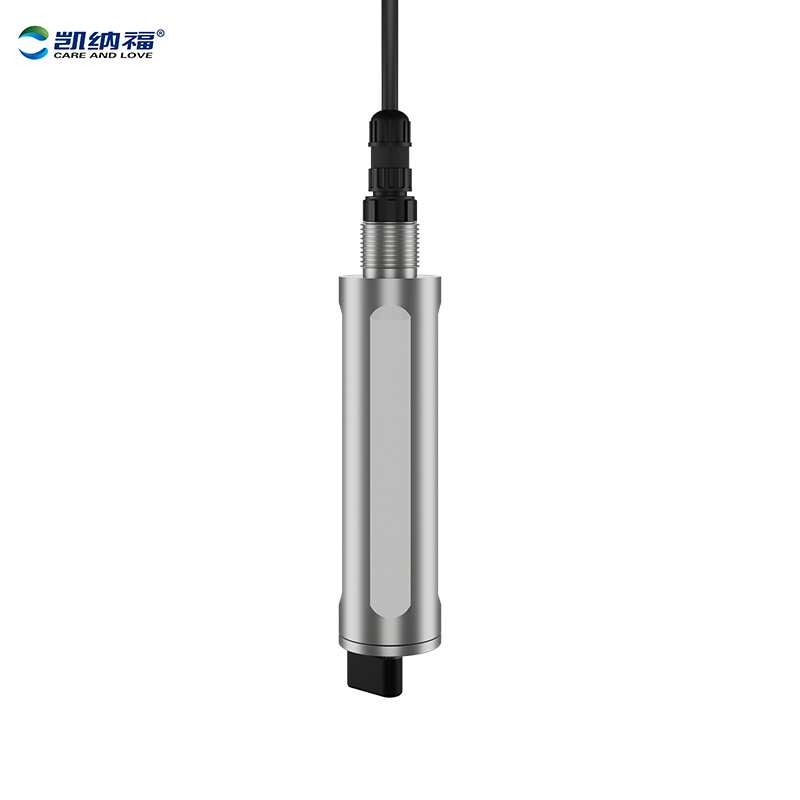

The brand-new KNF-1004/A series turbidity sensor from Kainafu adopts the 90° scattered light measurement principle and complies with the ISO7027 international standard. It features custom quartz optical components, is compact in size, robust and durable, easy to install and maintain, less susceptible to environmental light interference, and offers superior repeatability and stability. The sensor does not require reagents, is pollution-free, has a long service life, and is economical and environmentally friendly.

IP68 Online Water Turbidity Sensor Optical Probe Automatic Cleaning ODM 0
2. Sensor features
Digital sensor, RS-485 output, standard Modbus protocol, strong anti-interference ability
The 90° scattered light principle quartz glass window is not affected by ambient light and chromaticity
Equipped with an automatic cleaning device (KNF-1004A
Built-in calibration parameters, precisely calibrated at the factory, and can be directly installed and used
Equipped with turbidity calibration software, it can set the ID and calibrate the sensor

Sensor size unit (mm)

IP68 Online Water Turbidity Sensor Optical Probe Automatic Cleaning ODM 1

3.Technical indicators

Name	Parameter
Model	KNF-1004/KNF-1004A
Measurement principle	90° light scattering method
Measurement range	0-1000NTU
Precision	±5%
Protection grade	IP68
Maximum operating pressure	5 bar
Temperature range	0～50℃
Sensor interface	Supports RS-485 and MODBUS protocols
Cleaning device:	Self-cleaning brush (KNF-1004A)
Power supply information	DC 9-24V, current less than 50mA
Sensor size	Φ35mm*138mm
Thread model	M22*1.5
Assembly	Input type
Probe cable length	10 meters (default), customizable
Sensor material	Stainless steel
Calibration	One-point or two-point calibration

5. Introduction to the Water Quality Monitoring Software Cloud Platform (DATAIO)

All the water quality/water level related equipment produced by our company can be connected to the Kainafu water quality monitoring cloud platform! It can realize the reception, display, statistics, automatic analysis, storage, download and release of monitoring data from various water quality sensor devices. Generate visual calculation result charts intuitively on the display terminal of the monitoring management center.

▪ Desktop WEB page (login address: ion.onetestinc.com. Contact the product owner for a trial account to obtain it)
▪ Apple APP, Android APP
▪ Wechat Official Account/Mini Program

IP68 Online Water Turbidity Sensor Optical Probe Automatic Cleaning ODM 2

IP68 Online Water Turbidity Sensor Optical Probe Automatic Cleaning ODM 3
