Custom Optical Water Quality Sonde Turbidity Monitoring Sensors Submersible

Brand Name:	KaiNaFu
Model Number:	KNF-1004L
MOQ:	1pieces
Packaging Details:	Eco-friendly paper box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Document:

Range:

0 ~ 100NTU 0-1000NTU

Resolution:

0.001NTU 0.01NTU

Lower Limit Of Measurement:

0.005NTU 0.5NTU

Zero Drift:

≤ 1.5%

Indication Stability:

≤ 1.5%

Interface:

RS485 + 4-20mA Interface

Supply Ability:

500 pieces+One month

Highlight:

custom water quality sonde

Turbidity water quality sonde

water quality monitoring sensors

Product Description

Optical Turbidity Sensor Is IP68 Protected And Can Be Submersible With A Low-range Turbidity Sensor Probe

1.Product Introduction

The KNF-1004L low-range turbidity sensor is based on the ISO7027 standard and features a compact size, stable data, and fast response speed. It can be widely applied in online turbidity monitoring in waterworks, sewage treatment plants, surface water, industrial fields, etc.

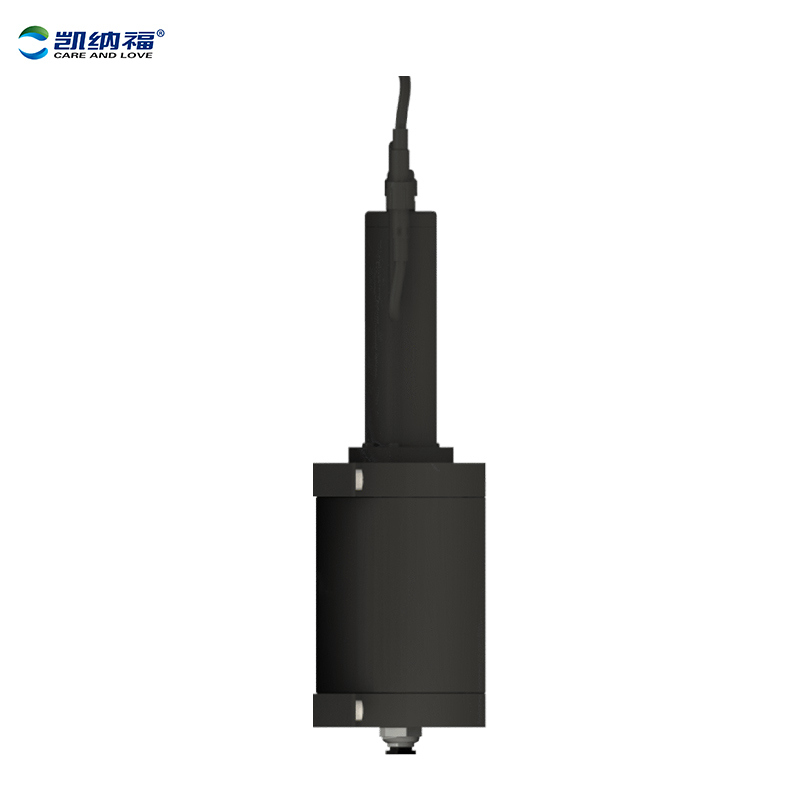

Custom Optical Water Quality Sonde Turbidity Monitoring Sensors Submersible 0

2. Working Principle
The sensor emits a laser beam into the liquid to be measured. The suspended particles in the liquid produce scattered light. The receiver detects the intensity of the scattered light and converts it into a turbidity value based on the calibration table.

3.Product Features
Compact in size, it is convenient for system integration.
2. Simple structure, easy to clean and maintain;
3. The beveled light window makes it less likely for bubbles to adhere.
4. Sealed structure, resistant to deep water or high pressure;
5. IP68 protection, suitable for submersible installation.

4.Technical parameters

Specification	Parameter
Power supply	DC 9-28V
Peak power	5W
Detection method	ISO 7027
Light source	860nm Laser
Protection grade	IP68
Range	0 ~ 100NTU 0-1000NTU
Resolution	0.001NTU 0.01NTU
Lower limit of measurement	0.005NTU 0.5NTU
Zero drift	≤ 1.5%
Indication stability	≤ 1.5%
Accuracy	2% or ± 0.05NTU(take the larger value); (Based on Formazin primary standard solution at 25℃)
Repeatability	≤ 1% (based on Formazin primary standard solution at 25℃)
Response time (T90	≤ 120秒
Working temperature	-5 ~ 45 ℃
Calibration method	Factory calibrated. Use the default calibration curve. Single-point calibration, Formazin two-point calibration 2 to 6-point customized calibration
Work pressure	≤ 0.6MPa or water depth ≤ 60 meters
Size	182mmΦ32(snap-on version) / 203mmΦ32(threaded version)
Shell material	ABS and POM plastics
Interface	RS485 + 4-20mA interface

5. Introduction to the Water Quality Monitoring Software Cloud Platform (DATAIO)

All the water quality/water level related equipment produced by our company can be connected to the Kainafu water quality monitoring cloud platform! It can realize the reception, display, statistics, automatic analysis, storage, download and release of monitoring data from various water quality sensor devices. Generate visual calculation result charts intuitively on the display terminal of the monitoring management center.

▪ Desktop WEB page (login address: ion.onetestinc.com. Contact the product owner for a trial account to obtain it)
▪ Apple APP, Android APP
Wechat Official Account/Mini Program

Custom Optical Water Quality Sonde Turbidity Monitoring Sensors Submersible 1

Custom Optical Water Quality Sonde Turbidity Monitoring Sensors Submersible 2
