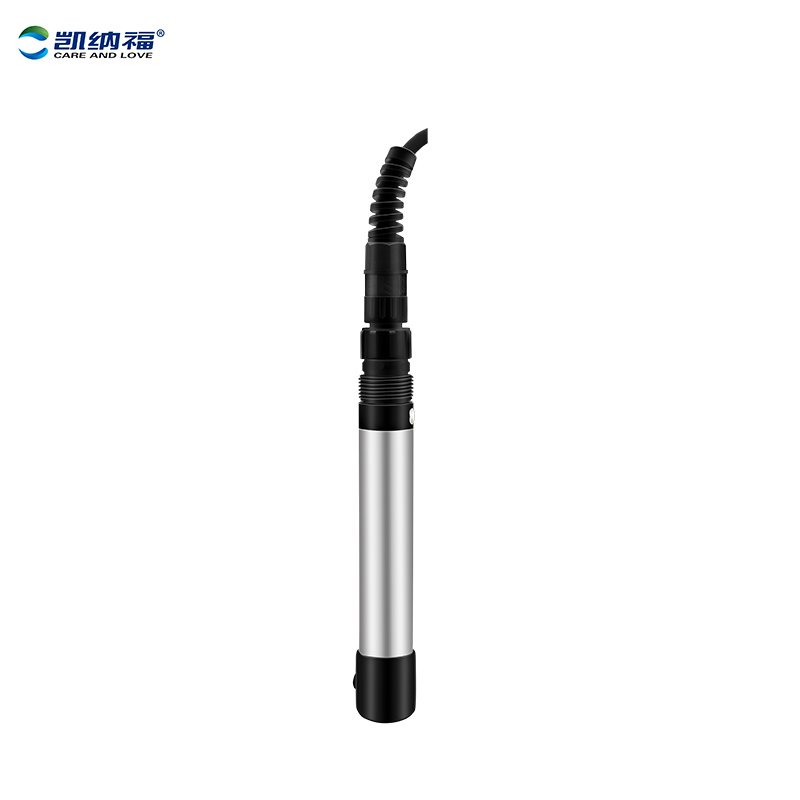

Submerged Dissolved Water Oxygen Sensor o2 DO Probe ODM

The Submerged Installation Of The Dissolved Oxygen Sensor For Aquaculture Has An RS485 Output DO Probe

1. Product Introduction

    The KNF-103B series fluorescence dissolved oxygen sensor adopts the new generation of fluorescence lifetime technology and independently develops high-performance fluorescence materials. It does not consume oxygen, has no flow rate limit, requires no electrolyte, needs no maintenance or calibration, is not disturbed by hydrogen sulfide, and has excellent stability. Built-in temperature sensor with automatic temperature compensation. RS485 output enables networking without a controller.

2.Features of KNF-103B Fluorescence Dissolved Oxygen Sensor
1. Digital sensor, RS485 output, supporting MODBUS
2. No membrane, no need for electrolyte, no interference, and no need for frequent calibration
3. It does not consume oxygen and has no flow rate limit
4. Built-in temperature sensor with automatic temperature compensation

3. Measurement principle of KNF-103B fluorescence dissolved Oxygen sensor:
The fluorescence dissolved oxygen sensor is based on the principle of quenching active fluorescence by specific substances in physics. Blue light emitted by a light-emitting diode (LED) shines on the fluorescent material on the inner surface of the fluorescent cap. The fluorescent material on the inner surface is excited and emits red light. By detecting the phase difference between the red and blue light and comparing it with the internal calibration value, the concentration of oxygen molecules is calculated. The final value is automatically compensated for by temperature and pressure.

4. Technical indicators

5. Introduction to the Water Quality Monitoring Software Cloud Platform (DATAIO)

    All the water quality/water level related equipment produced by our company can be connected to the Kainafu water quality monitoring cloud platform! It can realize the reception, display, statistics, automatic analysis, storage, download and release of monitoring data from various water quality sensor devices. Generate visual calculation result charts intuitively on the display terminal of the monitoring management center.

▪ Desktop WEB page (login address: ion.onetestinc.com. Contact the product owner for a trial account to obtain it)
▪ Apple APP, Android APP
Wechat Official Account/Mini Program
